Introduction-Silicone Rubber Wire

PRDUCT MODEL: Silicone Rubber Wire

Product Features:

1, Nominal Voltage: 600V

2, Testing Voltage: 2500V
3, Temperature Range: -60°C~+200°C
4, O.D. Tolerance: ±0.1mm
5, Conductor: Tinned copper, Bare copper
6, Insulator: Silicone Rubber
7, Color: white, blue, red, black, brown, yellow, green, yellow/green etc

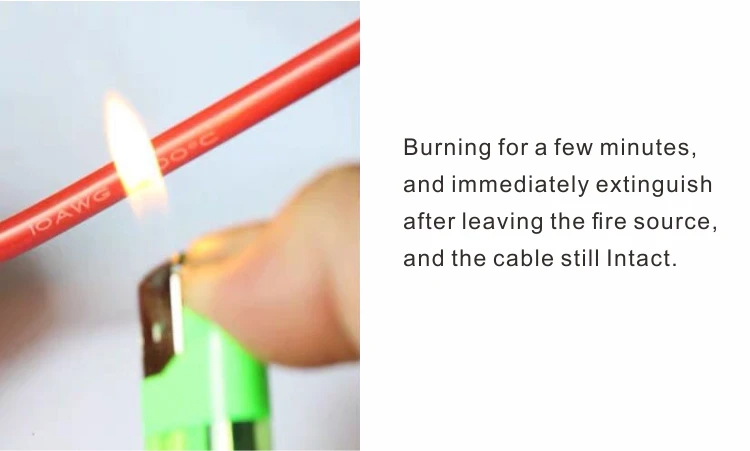

8, Flammability: VW-1

Feature:

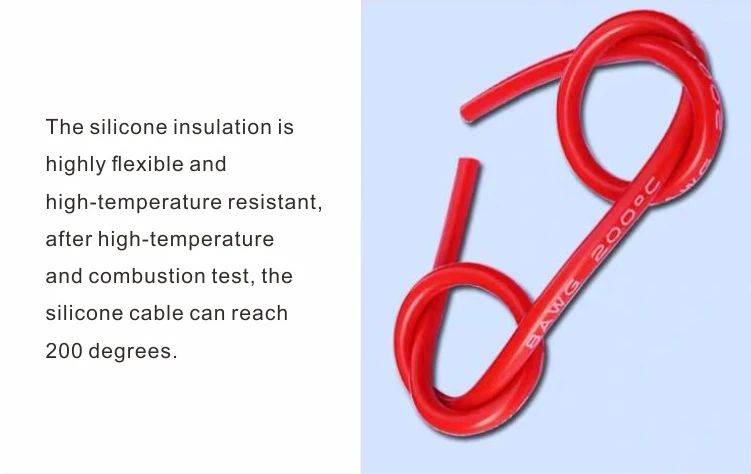

Silicone high temperature wire has excellent high temperature and low temperature resistance, excellent high pressure resistance, aging resistance, high temperature resistance, acid and alkali resistance, long service life.

Application :
Silicone rubber insulation, color: white, red, black, blue, green, yellow, translucent and so on.  Long service life, soft and easy to install.  Widely used in lighting fixtures, household appliances, electric heating appliances, instruments, motor wiring and electronics, lamps, dyeing and other high temperature wire environment.

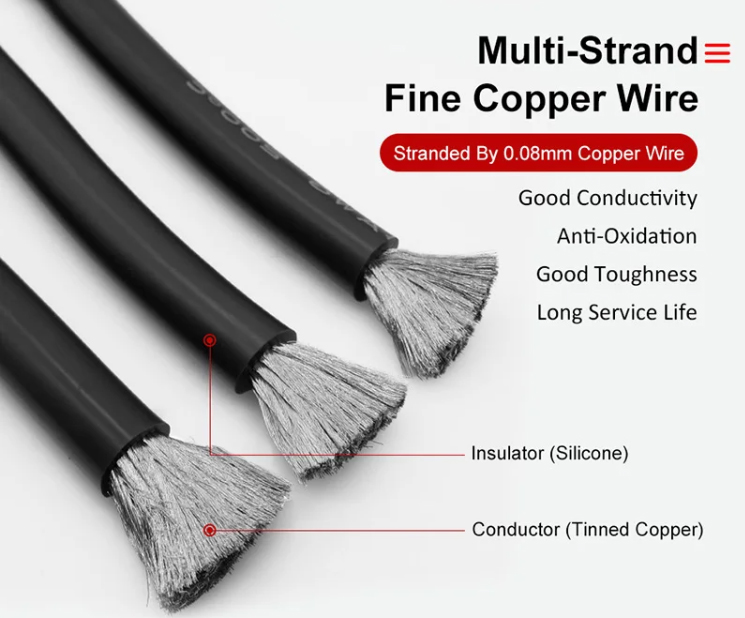

STRUCTURE

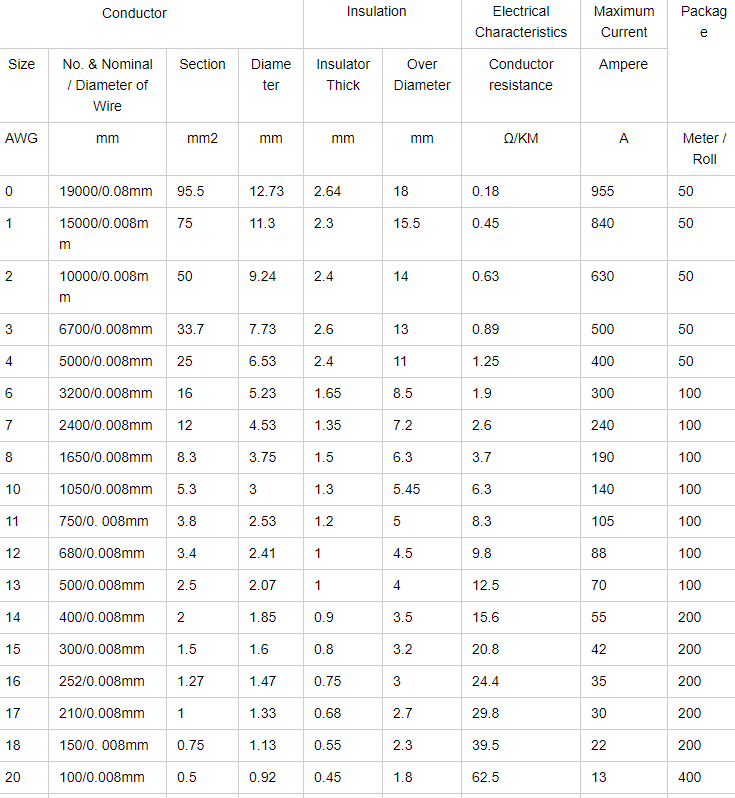

TECHNICAL DATA
