Introduction-Multicore Cable

PRODUCT MODEL: Multicore Cable

Product Feature:
1). Conductor Material : Tinned copper
2). Insulator Material : Silicone Rubber
3). Rated Temperature : -60°C~+200°C
4). O.D. Allowance: ±0.10mm
5). Nominal Voltage : 600V
6).Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Transparent-Yellow/green,etc

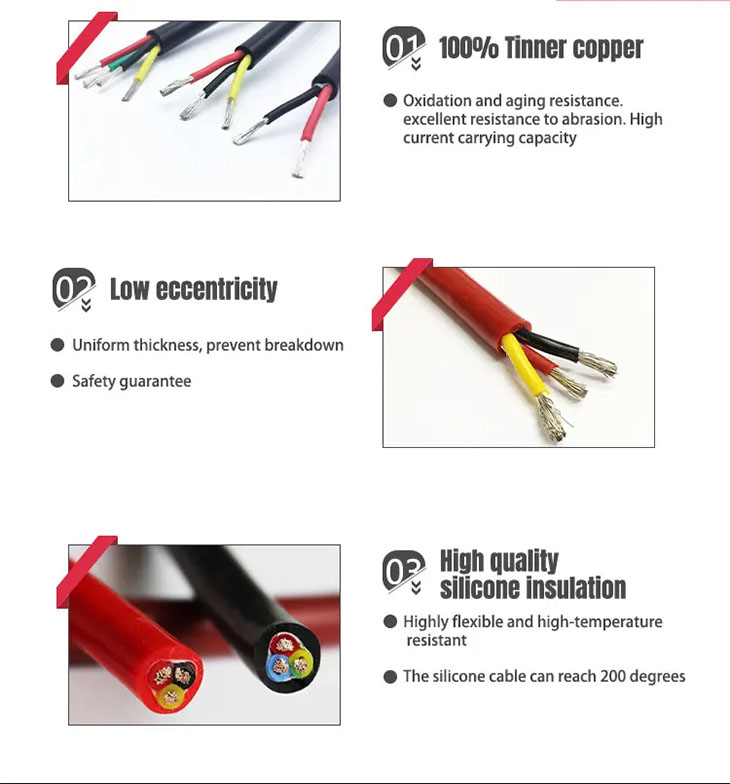

Feature

Core for the anti-oxidation tinned copper, copper wire bright light resistance has a good electrical conductivity, energy saving, durable, high security.

Wire sheath and insulation are made of ultra-soft silicone rubber (plus oil-resistant paper) with wear-resistant acid and alkali oil long life and other characteristics

Silicone skin is soft, not easy to harden brittle and smooth surface.

Resistant to high and low temperature: -60 ℃ ~ +200 ℃

Applications

1). Electronic industry
temperature compensation wire, low temperature wire
high temperature heating wire, anti-aging wire and flame retardant wire

2). Household appliances industry
air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers
electronic thermos, Electric oven, lighting and other internal wiring.

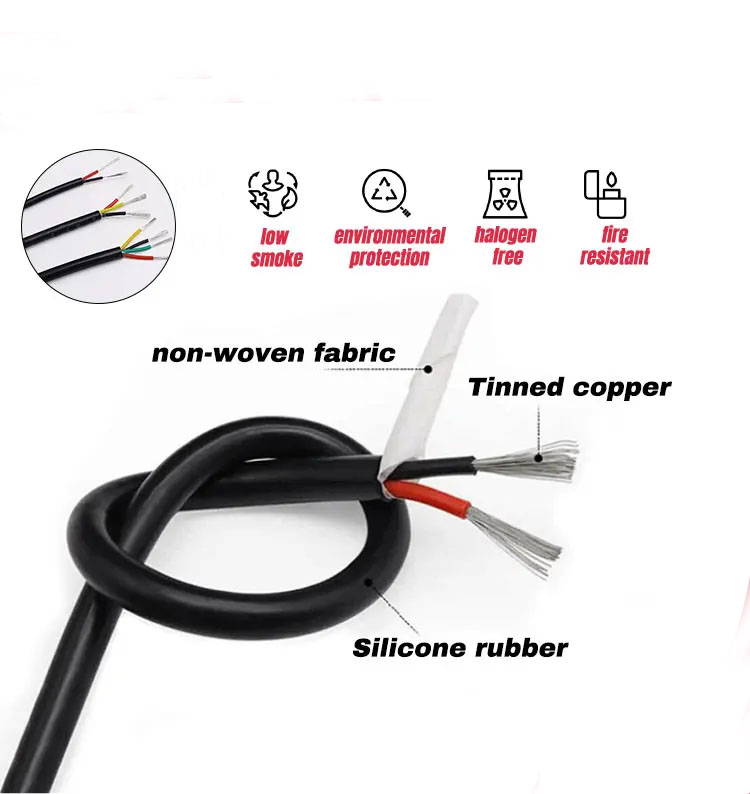

STRUCTURE

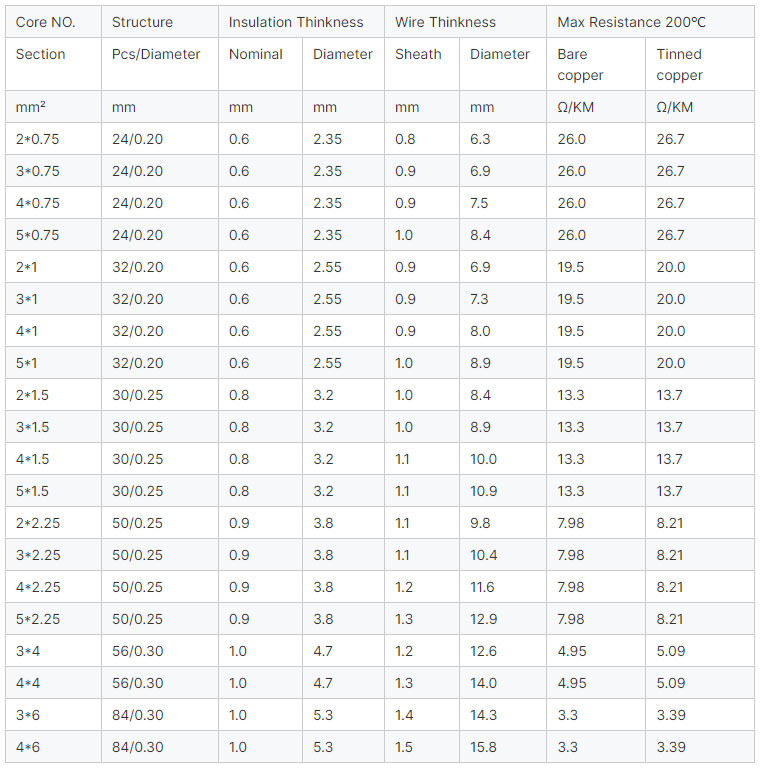

TECHNICAL DATA
