Introduction-Mica Wrapping Glassfiber Fire Fesistance Wire

PRODUCT MODEL: Mica Wrapping Glassfiber Fire Fesistance Wire

Product Features:

Conductor: Pure copper/Nickel Coated Copper/Pure Nickel
Insulation: Mica wrapping+Fiberglass
O.D.Tolerance: ±0.1mm
Temperature Range: -60℃~500℃/800°C/1000°C
Rated Voltage: 450V/750V
Colour: Red/Black/Yellow/Green/Blue/White

Feature

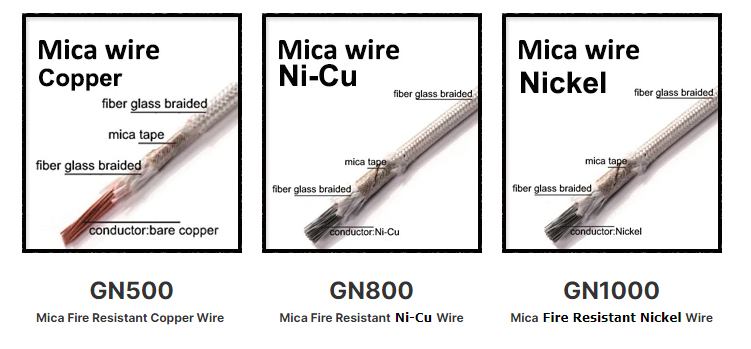

3 layer fire resistant high temperature insulation.
It uses high quality oxygen free copper wire.   The inner layer is high temperature resistant glass fiber woven insulation.  The middle layer high temperature mica tape wrapping with good quality, and the outer uses glass fiber braided sheath insulation.

Appliation:
High-temperature environment AC rated voltage 600V or less electrical circuit installation and connection, widely used in electromagnetic heating coil, metallurgy, petroleum, chemical, oil refining, natural gas and other special environments, various mechanical manufacturing fields, various electrical devices requiring fire performance The required wire and cable, as well as various electric heating equipment, electric heating devices and so on.

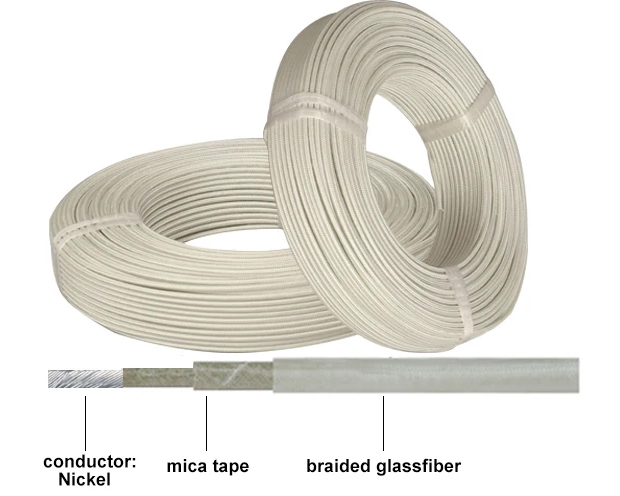

STRUCTURE

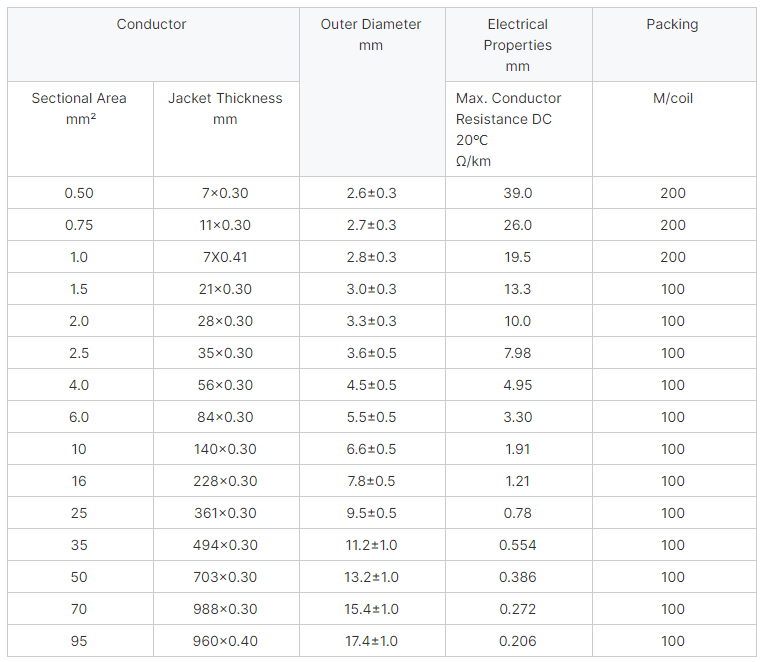

TECHNICAL DATA
