Introduction-Fluorine Plastic Wire

PRODUCT MODEL:FEP Wire ( Fluorine Plastic Wire )

Product Features:

1, Nominal Voltage: 600V

2, Testing Voltage: 2500V
3, Temperature Range: -60°C~+200°C
4, O.D. Tolerance: ±0.1mm
5, Conductor: Tinned copper, Bare copper
6, Insulator: FEP
7, Color: white, blue, red, black, brown, yellow, green, yellow/green etc

8, Flammability: VW-1

9, Type: FF46-1 ( Tinned copper conductor )      FF46-2 ( Silver plated copper conductor )

Feature:
FEP wire, commonly known as fluoroplastic wire, also known as high temperature wire, refers to the wire made of fluoroplastic in the insulation layer of the wire, which has the special performance of high temperature resistance. And FEP insulated wires have excellent electrical and mechanical characteristic, and extremely high thermal, cold, and chemical resistance. They are particularly well-suited to use in high-temperature environments such as near furnaces or engines. They can also be used in extremely low-temperature environments or environments with exposure to chemicals such as chemical plants.

Performance:
Excellent corrosion resistance, almost insoluble in any organic solvent, resistant to oil, strong acid, strong alkali, strong oxidant, etc.; excellent electrical insulation FEP wire. FEP wire can withstand high AC 600V voltage, low frequency loss, no moisture absorption, large insulation resistance; excellent flame resistance, aging resistance and long service life.

Application:
Widely used in the electronics industry, it can be used for temperature compensation wires, low temperature resistant wires, high temperature heating wires, aging resistant wires and flame retardant wires; in the household appliance industry, it can be used in air conditioners, microwave ovens, electronic disinfection cabinets, rice cookers, electronic hot water bottles, Internal wiring of electric heaters, electric ovens, electric woks, lighting fixtures, etc.

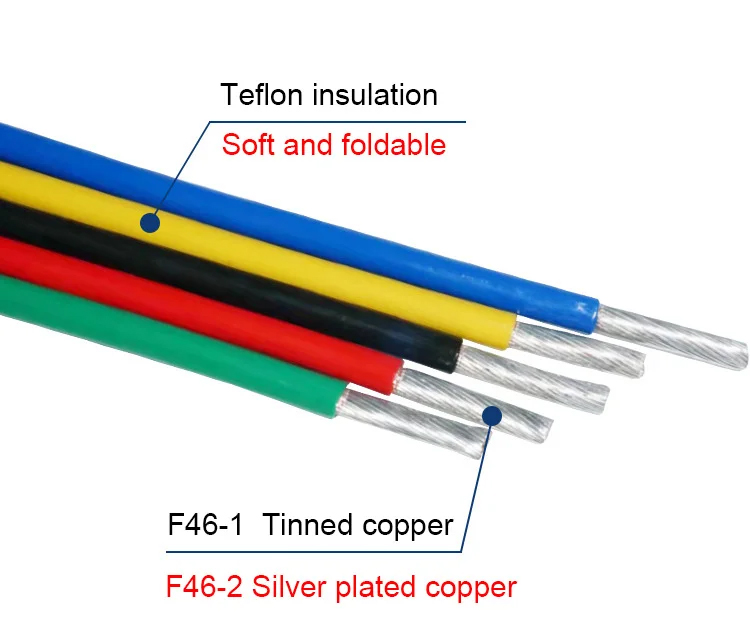

STRUCTURE

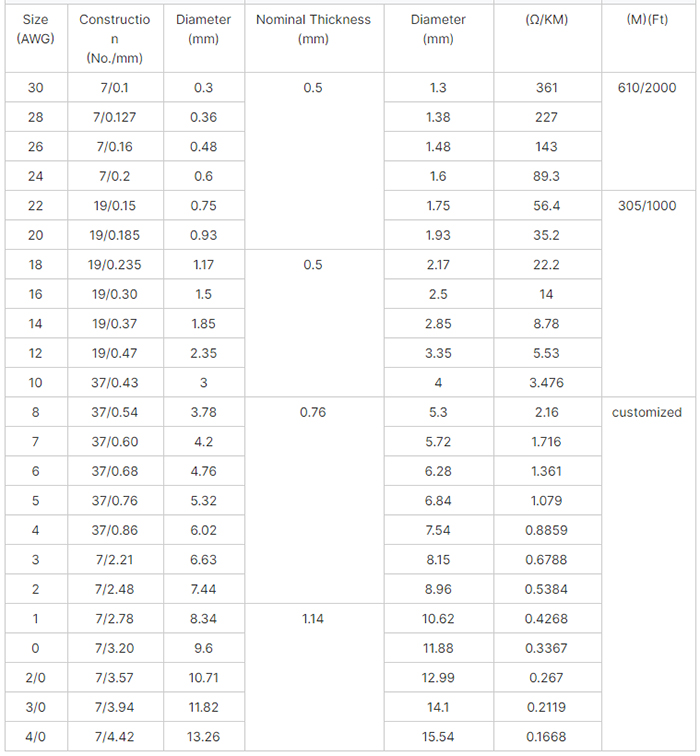

TECHNICAL DATA
