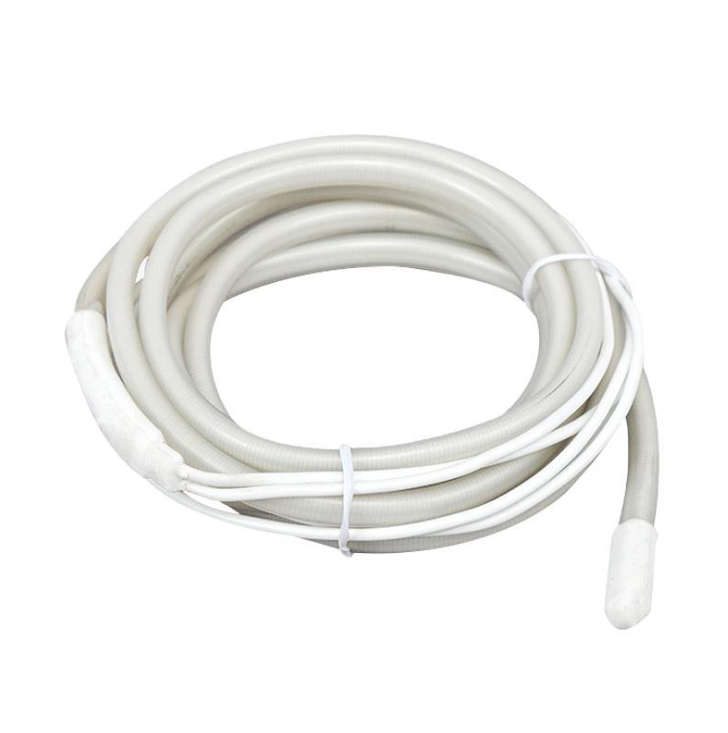

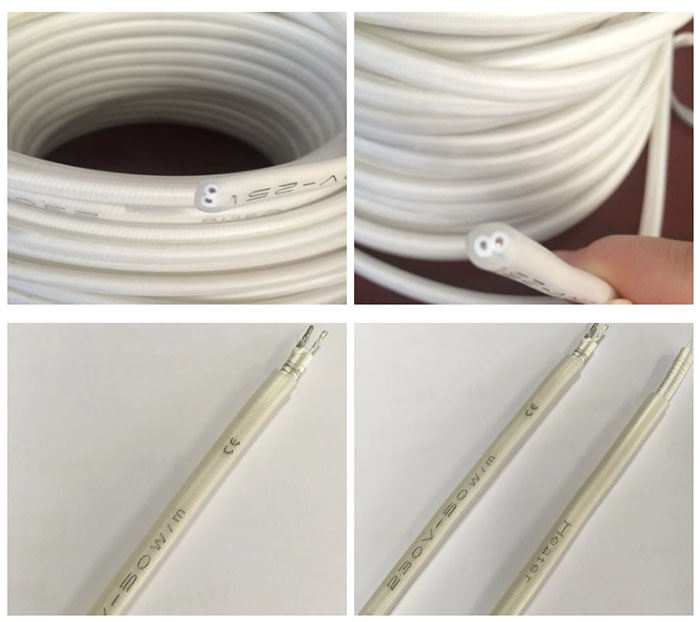

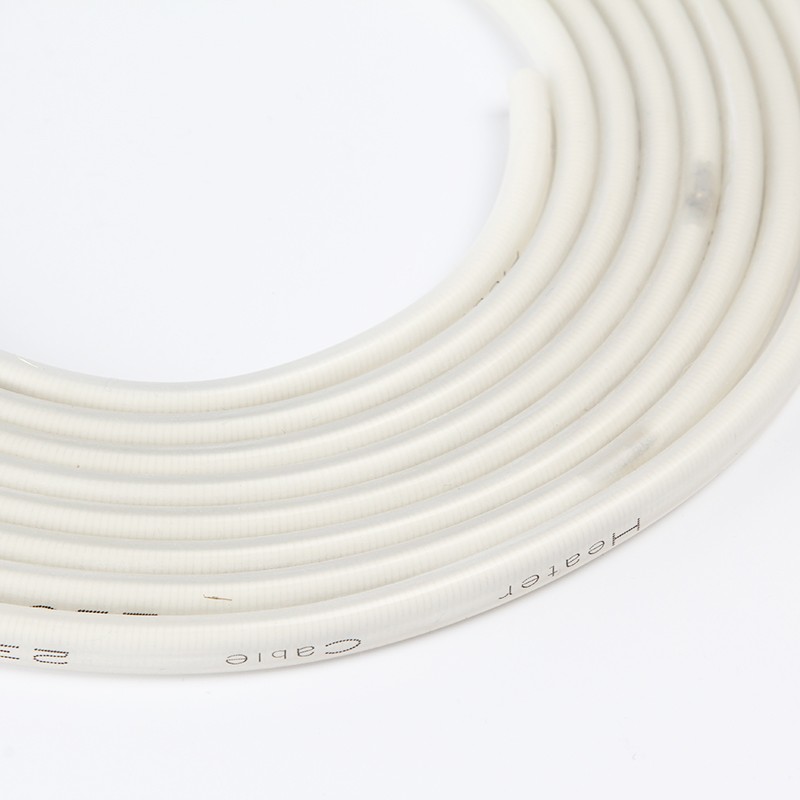

2 core 0.75mmsq constant wattage power parallel heat tracing cable wires

1).Conductor material:Tinned Copper
2).Conductor Structure: 2*0.75mmsq
3).Insulation Material: Silicone Rubber
4),Heating Element: Nichrome Wire
5).Jacket Material: Silicone Rubber
6).Wattage: 20W/M 25W/M 30W/M 40W//M

Output Power	25W/M	40W/M	50W/M
Voltage	220V
Lead	0.75 Square
Wire Insulation Material	Silicon Rubber
Heating Body	Cu-Ni Alloy Wire	Cu-Ni Alloy Wire	NiCr Alloy Wire
Heating Coil External Insulation	Silicon Rubber
Heating Body	5mm*7mm
Use Longest Limit	65M	50M	44M
Distance between Nodes	0.5M
Immergence Withstand Voltage	AC3500V	Insulation Resistance	≥200mn

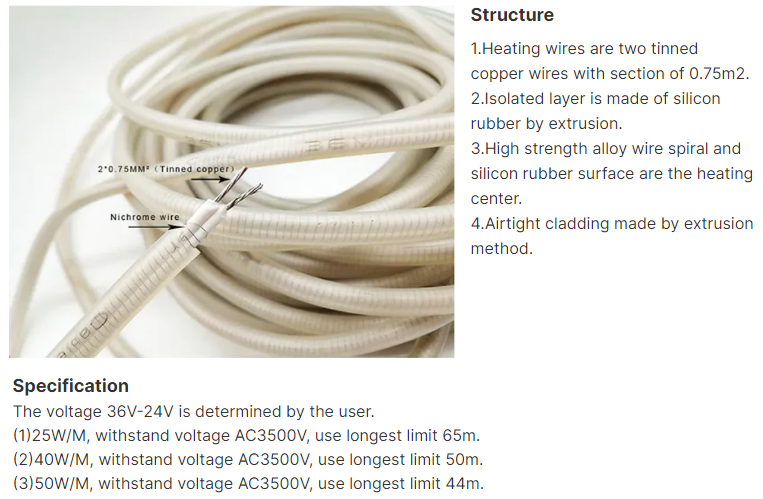

Structure:

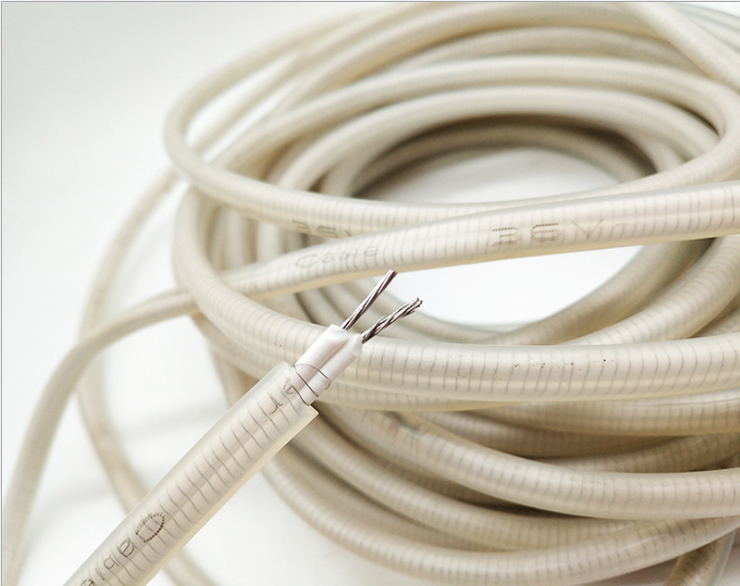

1.Heating wires are two tinned copper wires with section of 0.75m2.

2.Isolated layer is made of silicon rubber by extrusion.

3.High strength alloy wire spiral and silicon rubber surface are the heating center.

4.Airtight cladding made by extrusion method.

Product Features:

(1) Good temperature resistance. The whole adopts silicone rubber as the insulating and heat-conducting material (including power cord), and the working environment temperature is 200 ℃.
(2) Good heat conduction performance: heat energy can be generated when power is applied, and heat conduction is conducted directly. The thermal efficiency is high, and the effect can be achieved by heating for a short time.
(3) Reliable electrical performance: Each electric heating belt is tested at the factory after strict DC resistance, water immersion high voltage and insulation resistance to ensure quality.
(4) The structure is strong, flexible and easy to bend; combined with the whole cold tail section, there is no joint. The structure is reasonable and easy to install.
(5) Strong designability; heating length, lead length, rated voltage, power are determined by the user.

Application

Food & Catering (Chocolate machines – Refrigerating cases + blast chillers)
Air conditioning (compressor crankcase heaters);

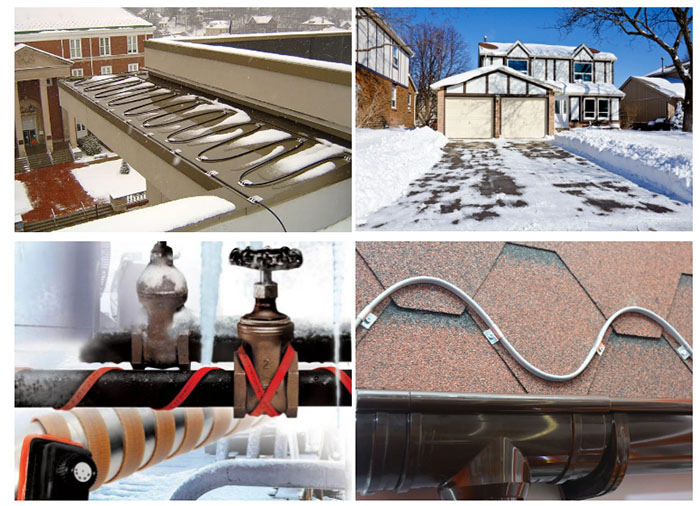

Construction (frost protection and heating for pipes, valves, snowmelt system gutters and ramps – Deicing and floor heating –Heated benches – Defrosting melt snow;
Incubators, aquariums, terrariums, greenhouses, germinatoi (heating greenhouses, aquariums and terrariums)
Medical (Celle mortuary)
Industrial and commercial refrigeration (evaporators defrosting refrigerators for industrial, commercial and domestic – Pore and defrost doors, windows and cold storage – Ice cream machines);
