Teflon Insulated UL1332 High Temperature Awg Pfa Fep Etfe Ptfe Cable Copper Hook Up Electric Wire For Appliance

Teflon Insulated UL1332 High Temperature Awg Pfa Fep Etfe Ptfe Cable Copper Hook Up Electric Wire For Appliance

1). Conductor Material: Nickel plated copper / Silver plated
2). Insulation Material: PTFE/PFA
3). Rated voltage: 600V
4),Temperature: 250°C
5). Color: Red,Yellow,Blue,Green,Black,White,Orange,Grey

Product Description:

Teflon Insulated UL1332 High Temperature Awg PFA FEP ETFE PTFE Cable Copper Hook Up Electric Wire For Appliance

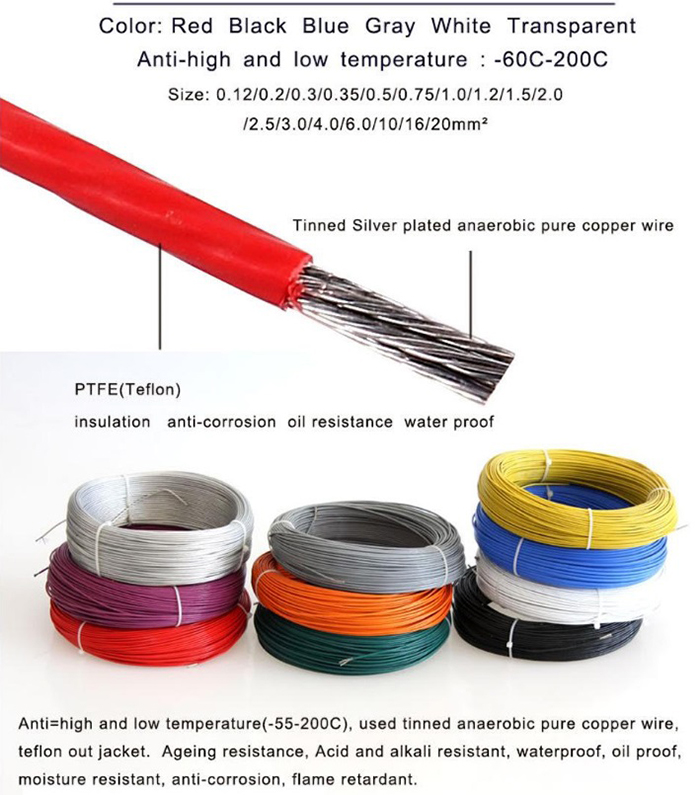

Properties of PTFE Wire
1. Rated voltage: 200V
2. Working temperature: -60 ~ 250℃, short-term temperature 350℃

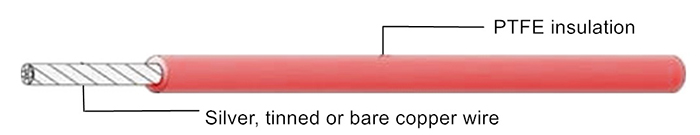

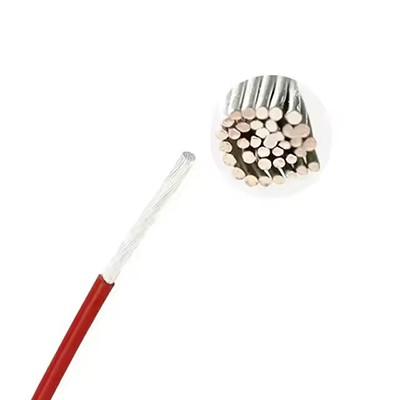

3. Conductor bare copper stranded, silver plated copper stranded or nickel plated copper stranded
4. Insulation: PTFE film (PTFE wrapped insulation)
5. Color: red/yellow/blue/white/black/gray/brown/purple/green etc.
6. Test voltage: 1000V, 1500V, 2500V

About PTFE Wire:
1. High temperature resistance
2. Cold resistance
3. Good softness
4. Aging resistance
5. Anti-interference
6. Easy insulation stripping
7. Easy welding conductor
8. Small diameter
9. Especially suitable for frequent bending occasions

Application of PTFE Wire

1. For connecting internal electrical equipment of various kinds of aircraft, airships, armored vehicles, ships under high temperature environment.
2. In industrial and mining enterprises such as metallurgy, petroleum, chemical and power plants, and is used as a connecting line for various electrical appliances, instruments and automatic devices under high temperature conditions and harsh environments

Type and Name:

Type	Name
AFR-200	Copper conductor wrapped PTFE wire
AFR-250	Silver coated copper conductor wrapped PTFE wire
AFRP-200	Copper conductor wrapped PTFE wire with shielding
AFRP-250	Silver coated copper conductor wrapped PTFE wire
AFRPF-250, AFPF	Silver coated copper conductor wrapped PTFE wire with shielding and PTFE jacket
