Silicone Shielded Cable Electric Screened Wire CCC CE Standard Tinned Copper Power Wire

Silicone Shielded Cable Electric Screened Wire CCC CE Standard Tinned Copper Power Wire

1). Conductor Material : Tinned Copper
2). Insulation Material : Silicone Rubber
3), Jacket Material: Silicone Rubber
3). Rated Temperature : -60°C~+200°C
4). Rated Voltage : 300/500V
5). Colors: Black,Red,White,Blue,Yellow,Green,Brown,Grey,Purple,orange

Product Description:

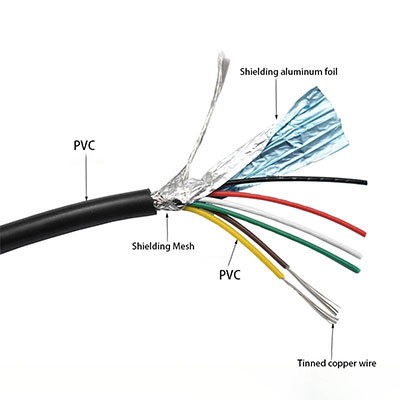

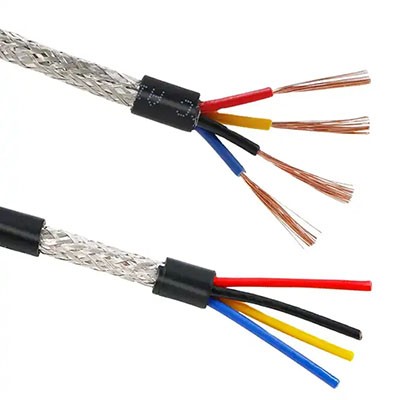

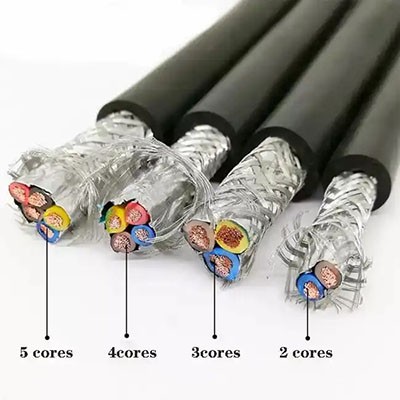

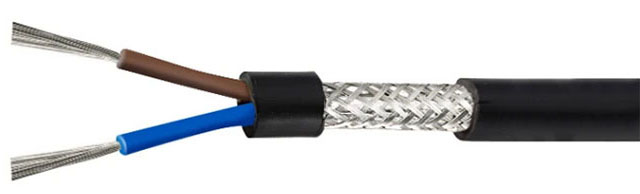

Shielded cable

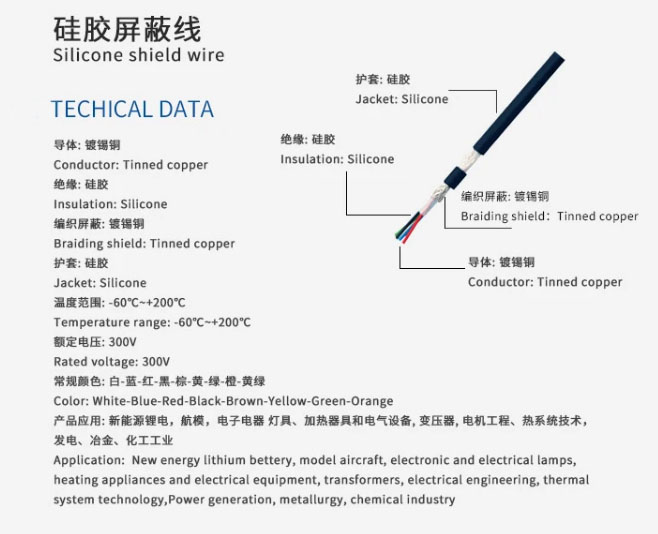

Technical Data:

1.Product type:YGZP

1.Conductor:Tinned Copper(Solid or Strand)

2.Insulator : Silicone

3.Nominal Temperature : 200℃

4.Nominal voltage : 300/500V

5. Shield: Tinned Copper, Coverage over 93%.
6. Jacket: Silicone
7. Color: Customized

Features:

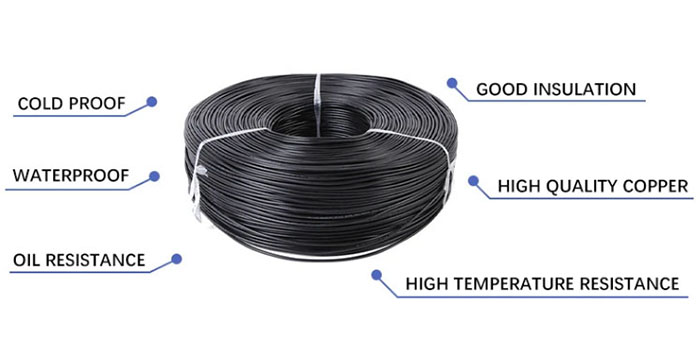

1.Characteristics : Anti - acid & alkali, oil - resistant, moisture-proof, anti - mildew, etc. Easy to peel and cut.

2.Flammability Test : pass the UL VW - 1 and CSA FT1 vertical flame test

3.Over Diameter tolerance: ±0.1mm

4.It's usually 100 meters per roll

Application:

Suitable for AC rated voltage 450/750V and all kinds of high temperature environment such as mobile motor, steel, aviation, power plant, petrochemical, etc.
