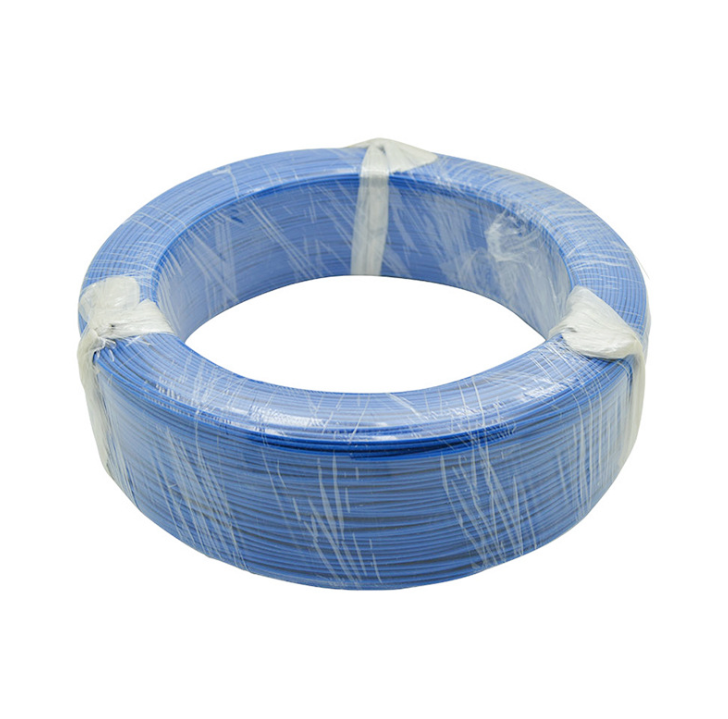

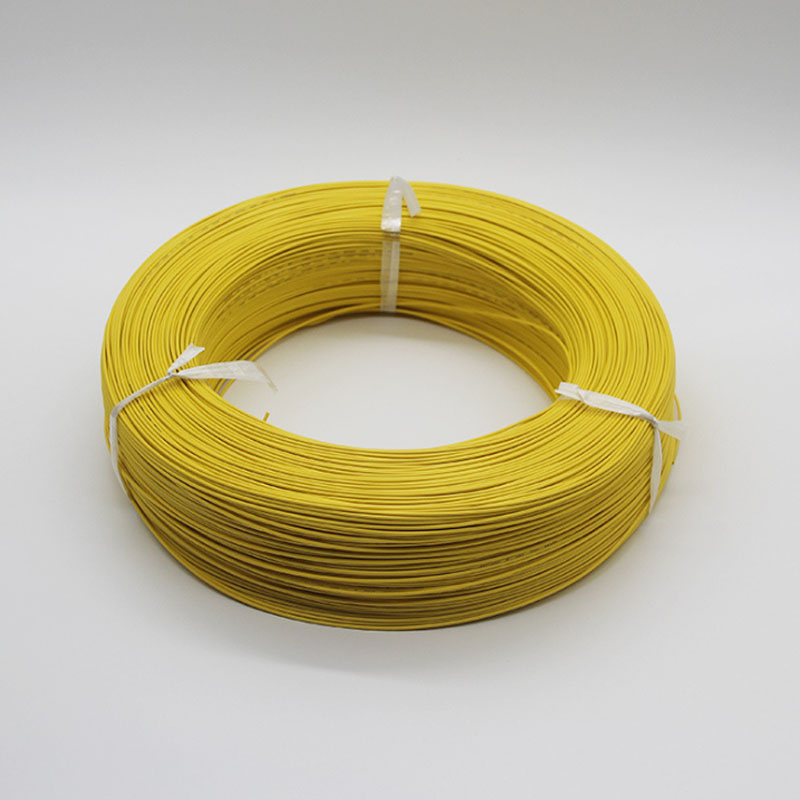

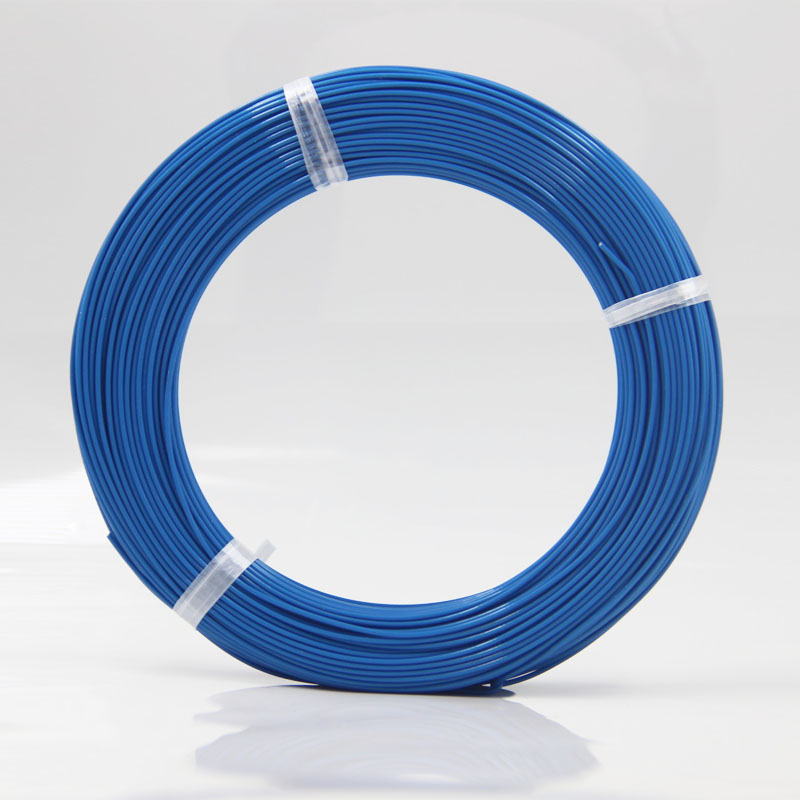

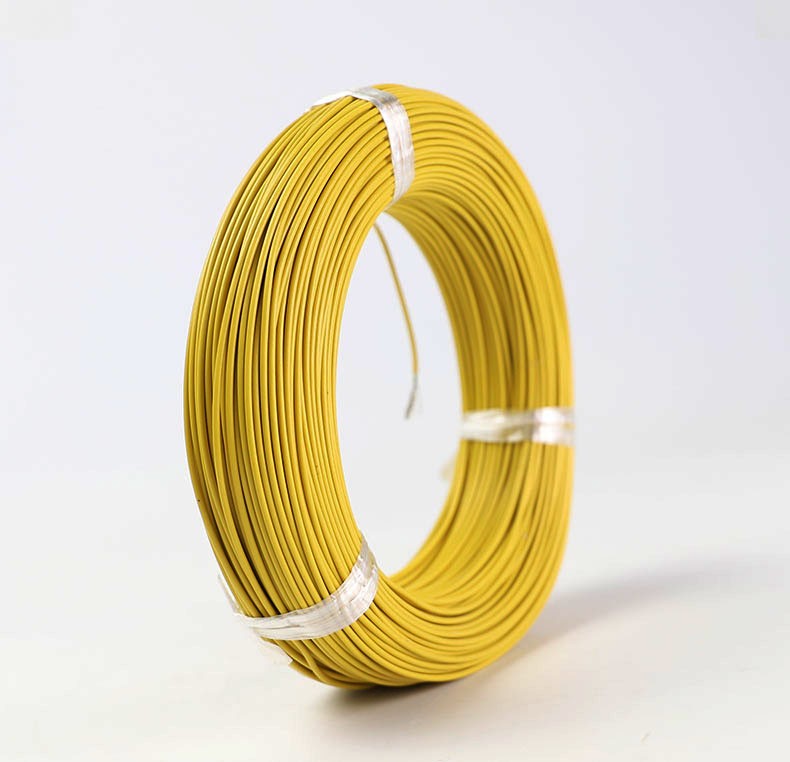

1.5mm cable OEM High Temperature Wire 22AWG FEP PTFE PFA ETFE wire

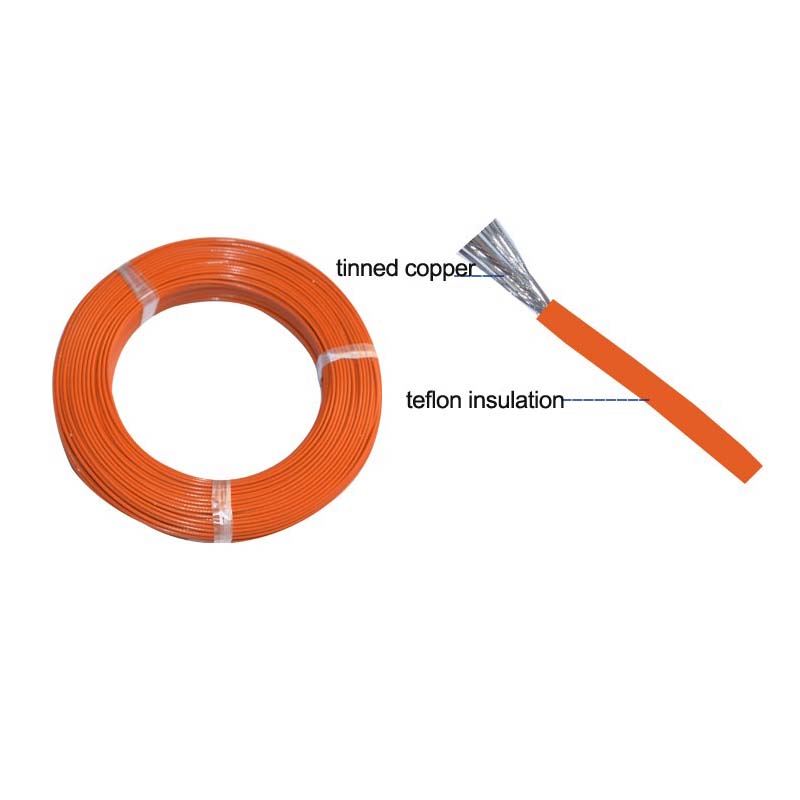

1). Conductor Material : Tinned Copper
2). Insulation Material : Fluorine plastic
3). Rated Temperature : -65°C~+200°C
4). Rated Voltage : 600V

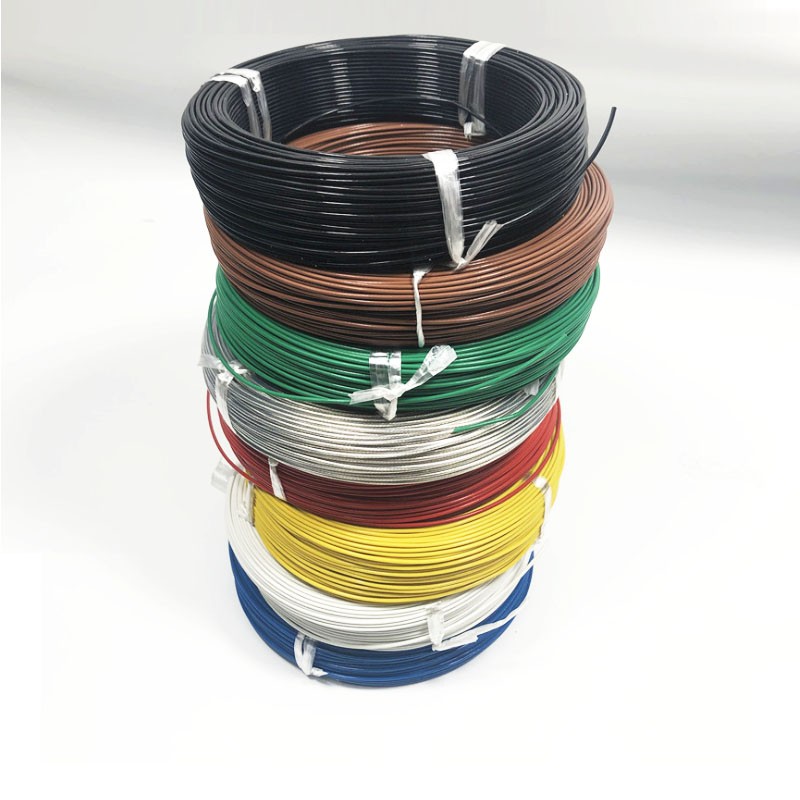

5). Colors: Black,Red,White,Blue,Yellow,Green,Brown,Grey,Purple,orange,Green/Yellow

Product Description:

Item
Value
Place of Origin
China (Shanghai )
Brand Name
Selfu
Product Name
Fluorine plastic wire
Type
Insulated
Application
Electric conduction
Conductor Material
Tinned copper
Conductor Type
Stranded
Conductor structure
0.08mm tinned copper or customized
Insulation Material
Fluorine plastic (FEP)
Model Number
0.2mmsq - 180mmsq
Features
Super soft, Excellent flexibility
Conductor characteristics
Oxidation Resistance
Working temperature
-65°C~+200°C
Customization
Customized service according to client's requirements
Color
Black,Red,White,Blue,Yellow,Green,Brown,Grey,Green/Yellow

INTRODUCTION:

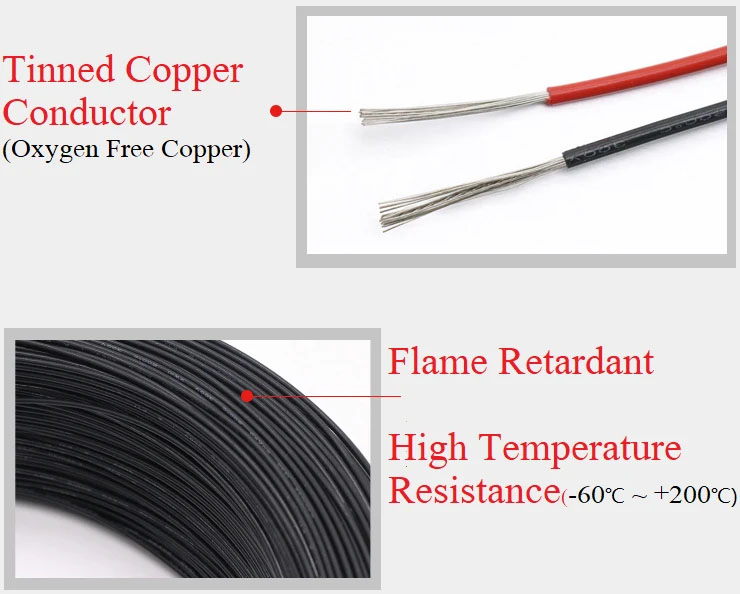

1.Oxygen free pure copper conductor
The conductor is made of oxygen free pure copper, with a tin plated surface and a cross-section that meets the standard
Low resistance, high conductivity, anti-aging, low loss, strong current load capacity
2.Fluoroplastic insulation
Adopting environmentally friendly flame retardant new materials for flame retardancy and fire resistance,
Cold resistant, frost resistant, high temperature resistant, wear-resistant, oil resistant, and corrosion-resistant, ensuring safe and reliable use
3.National standard meter
Many cables with a length of 100 meters on the market have not been tested,
This may seem like a significant reduction in price, but in reality, it's even less cost-effective. The Hanstar brand offers 100 meters per roll,
Positive or negative 1 meter error, can be rolled into rolls of 100 meters/200 meters/500 meters/1000 meters according to customer requirements
4.Low eccentricity, safer
Selfu wire adopts advanced equipment and strictly produces to ensure the low eccentricity of wire with even thickness
Prevent electric current from breaking through the skin to ensure electrical safety!
5.Good fire resistance and flame retardancy
After combustion testing, the external flame of the Hanstar wire does not burn and there are no toxic or harmful gases,


Application
Can used widely in 200C high temperature and 600V high voltage environment ,for example ,household appliances, business office machines, steel, metallurgy, petroleum, chemical industry, trafic, building lightingi ,nstrumentation, sensors, signal transmission,automatic control, medical electronics,etc.
