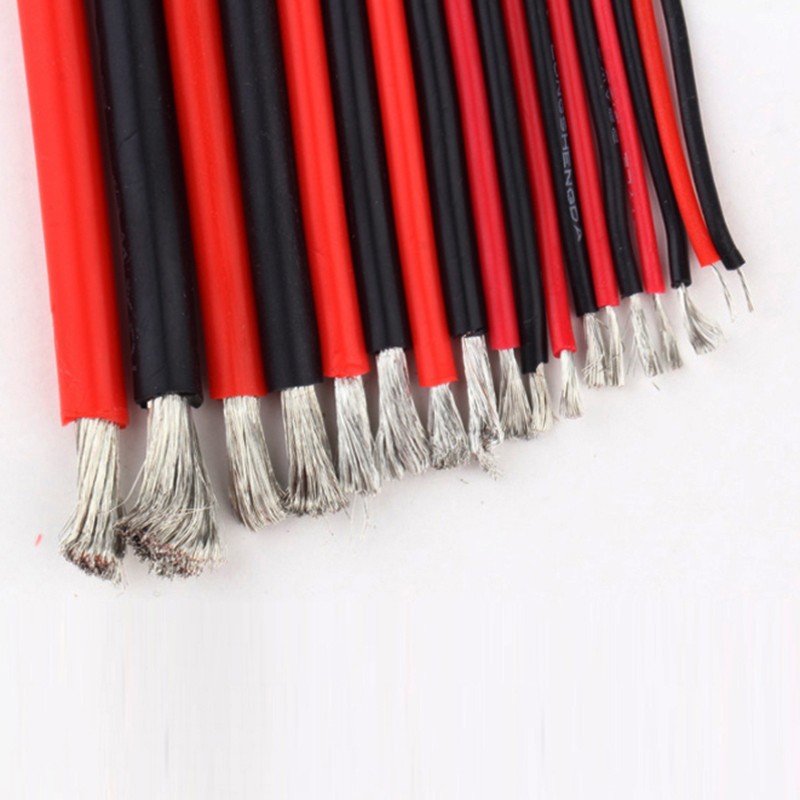

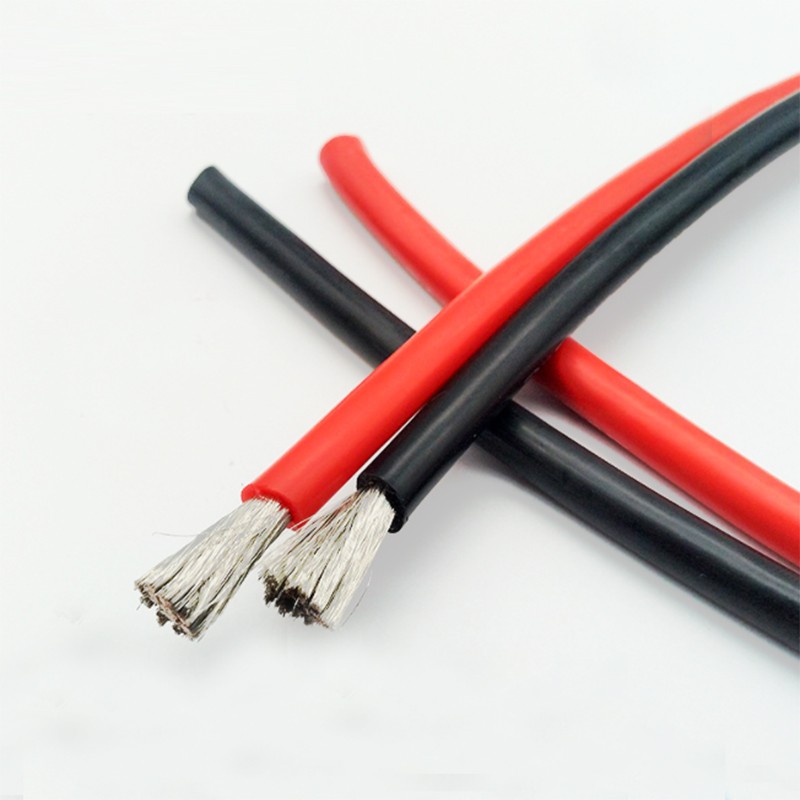

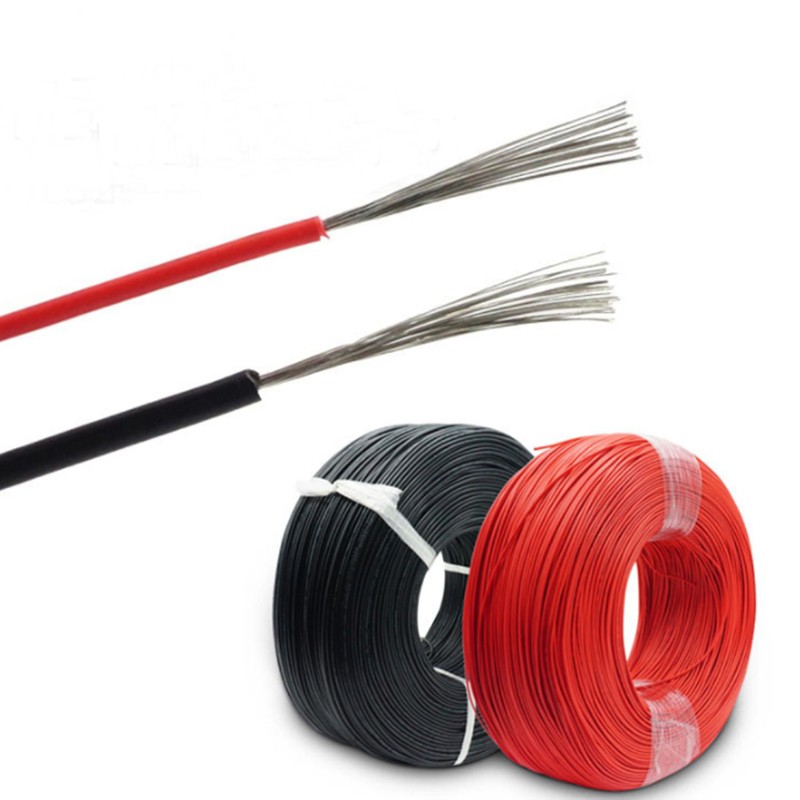

High Temperature Soft Silicone Electric Wire

1). Conductor Material : Tinned Copper
2). Insulation Material : Silicone Rubber
3). Rated Temperature : -60°C~+180°C
4). Rated Voltage : 300/500V
5). Colors: Black,Red,White,Blue,Yellow,Green,Brown,Grey,Purple,orange,Green/Yellow

Product Description:

Item
Value
Place of Origin
China (Shanghai )
Brand Name
Selfu
Product Name
Silicone Rubber Wire
Type
Insulated
Application
Electric conduction
Conductor Material
Tinned copper
Conductor Type
Stranded
Conductor structure
0.08mm tinned copper or customized
Insulation Material
Siliccone Rubber
Model Number
0.2mmsq - 180mmsq
Features
Super soft, Excellent flexibility
Conductor characteristics
Oxidation Resistance
Working temperature
-60°C~+180°C
Customization
Customized service according to client's requirements
Color
Black,Red,White,Blue,Yellow,Green,Brown,Grey,Green/Yellow

Silicone Wire is widely apply in home appliance, headlamp, mechanical and electrical machine etc.

It has extremely temperature resistance, super-soft , anti-acid, anti-oil, antisepsis and easy to install with small size and slippery surface.

We will guide you to choose the wire you need as below,

10AWG - big lipos >5,000mAh

12AWG - Big lipos >3,300mAh, biggest that will fit 4mm bullets etc.

14AWG - Most commonly used on SubC NiMH packs, lipos >2,000mAh motors etc.

16AWG - Airsoft mini batteries, Lipos >1300mAh

18AWG - AA power packs, Lipos >1,000mAh

20AWG - Small power packs, thickest wire that will fit JST connector, Mini-T connectors etc.

22AWG - Receiver batteries, commonly used for Futaba, JST, connectors, LED & low power lighting etc

24AWG - Light weight receiver batteries, LED lighting etc



Application:

household appliances, LED lighting, electronic equipment, automotive wiring, energy vehicle battery,F.H motor and other high temperature enviroment.
