BVR 1.5mm 2.5mm 4mm 6mm AWG 6 11 13 15 Single Core Copper PVC House Wire Electrical Cable Building Wire Cable for House Wiring

BVR 1.5mm 2.5mm 4mm 6mm AWG 6 11 13 15 Single Core Copper PVC House Wire Electrical Cable Building Wire Cable for House Wiring

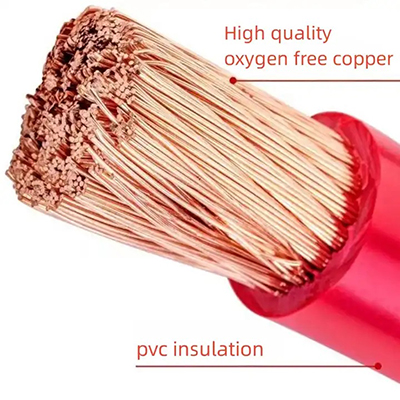

1). Conductor Material: Copper(Bare copper / Tinned copper )
2). Insulation Material: PVC
3). Rated voltage: 450/750V
4). Application: Construction

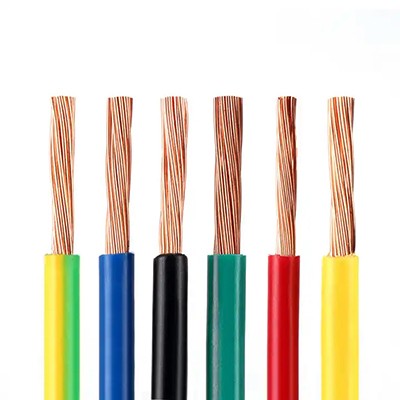

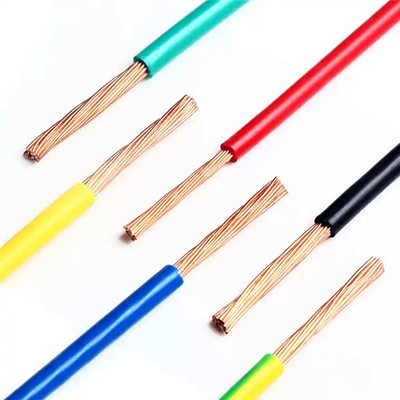

5). Color: Red,Yellow,Blue,Green,Black,White,Green/Yellow

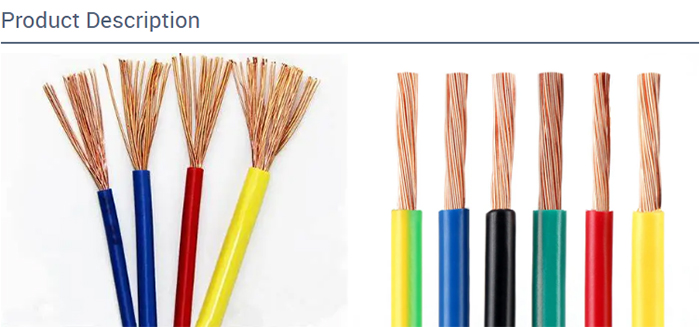

Product Description:

1. Product use
The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.

2.Operating characteristic
A)U0/U is 450/750V, 300/500V and 300/300V
B) The long-term allowable working temperature of the cable core shall not exceed 70℃ Bv-90 should not exceed 90℃, short-term working temperature can be raised to 105℃ The cable laying temperature shall not be lower than 0℃
C) Allowable bending radius of cable:
If the cable outer diameter (D) is less than 25mm, it should not be less than 4D
If the cable diameter (D) is 25mm and above, it shall not be less than 6D

3.Product structure, size and reference data
450/750V Copper conductor PVC insulated cable(BVR)

BVR cable wire characteristics
The product is suitable for fixed installation of power plant with rated AC voltage up to and including 450/750V. Such as home decoration lighting. Fixed wiring can be used for indoor open coating, pipe piercing and other occasions. In order to facilitate the difference in the installation process, it can be divided into seven colors: red, yellow, blue, green, black, white and double. As BVR is soft structure, its application scope is mostly in soft environment.

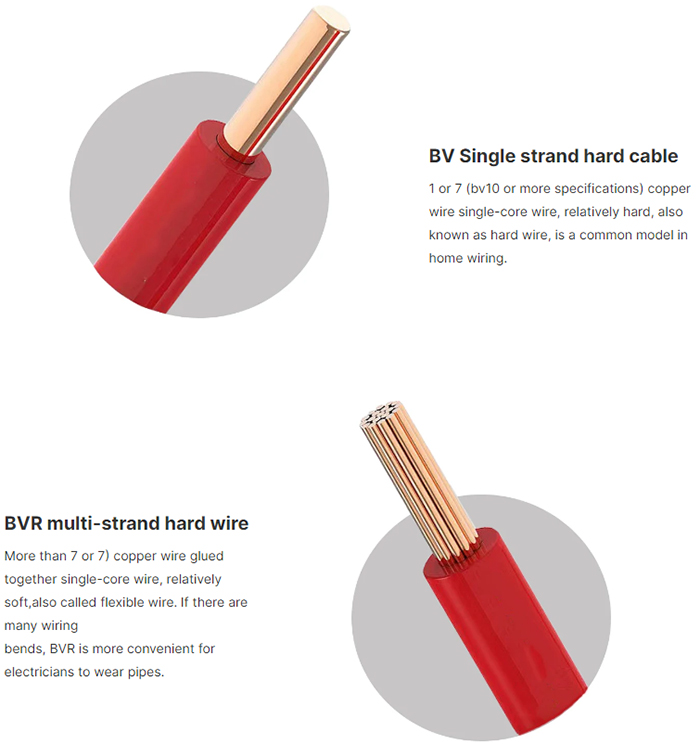

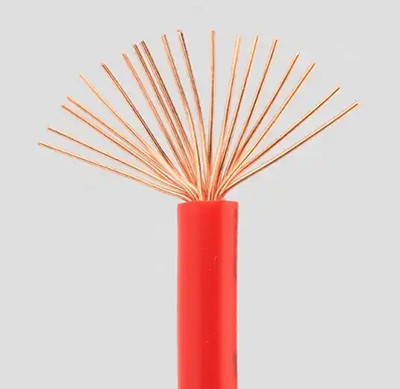

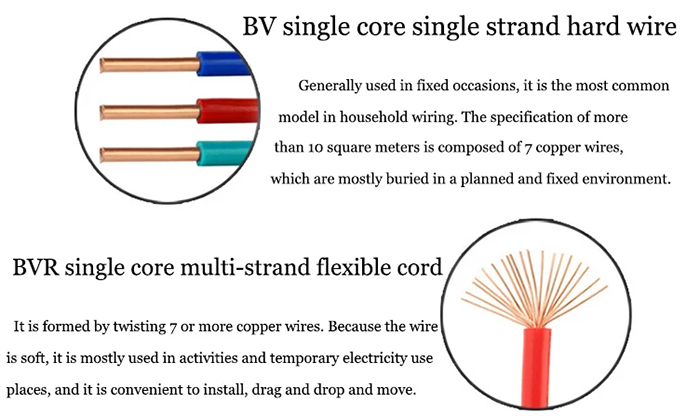

The only difference between BVR wire and BV wire is that the diameter of the R wire conductor is soft copper wire. That is, increase the number of conductors and reduce the diameter of a single conductor. The diameter of a single conductor is less than 1 mm. In this way, BVR wire is very soft, laying Angle requirements are greatly reduced than BV wire, threading pipe, groove more convenient, fast, reduce the working intensity while greatly improving the work efficiency. By the majority of electricians and architectural decoration personnel like!

APPLICATION:

Home distribution
To provide you with reliable quality products, ensure the transmission of electricity, for your family to provide a good living environment.

Urban power distribution
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Engineering project
Innovative research and development of high-quality, multi-field cable products to meet the demand for electricity in various fields, to ensure the smooth progress of industry projects.
