33ohms 12k silicone rubber carbon fiber electric wire underfloor heating resistance wire

33ohms 12k silicone rubber carbon fiber electric wire underfloor heating resistance wire

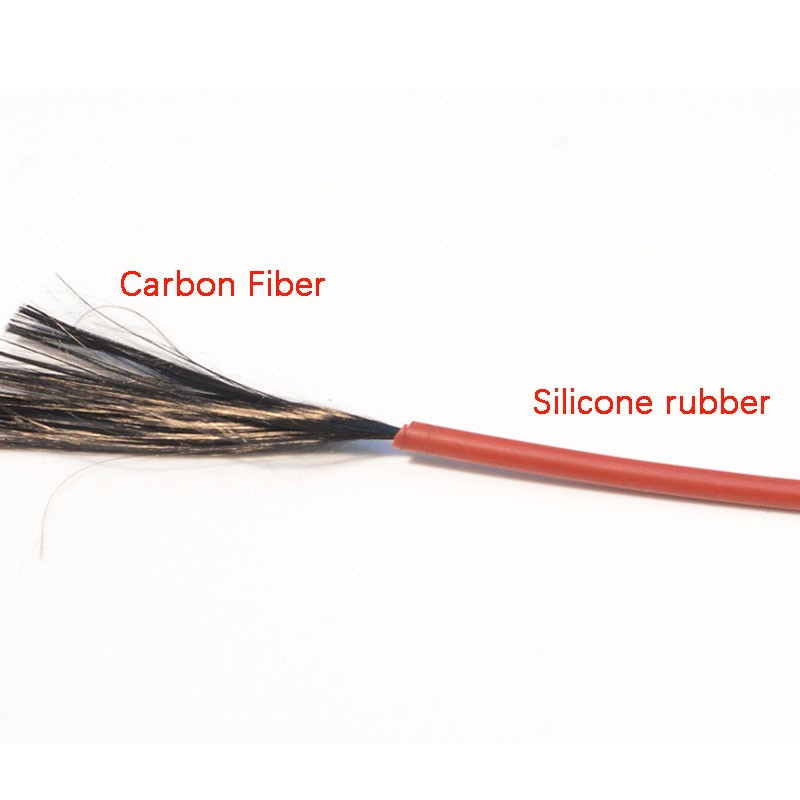

1). Conductor Material : Carbon fiber
2). Insulation Material : Silicone Rubber/FEP/PTFE
3). Rated Temperature : -60°C~+200°C
4). Rated Voltage : 600V
5). Colors: Black,Red,White,Black
6). Specification:1K.3K,6K,9K,12K,18K,24K,36K,48K,

Product Description:

Type	Silicon insulation carbon fiber heating wire
Rated voltage	300V
Rated temperature	200℃
Conductor	carbon fiber
Insulator	silicone rubber
Outer diameter tolerance	±0.15mm
Wire diameter range	Φ1.5-Φ5.0mm
Resistance range	133,102,66,57,44,33,26,28,22,17,15,13.5,11,8,6.5Ω/M
General specification	1K,3K,6K,18K.12K,24K,36K.48K.
Colour	Red / Black / White or Customized
Packing	100m/Roll or Customized

Conductor	1K	3K	6K	12k	18K	24K	36K	48K
ohm/m	450	133	66	33	21	17	12	8.5
Outer diameter(mm)	2.0	2.0	2.0	3.0	3.0	3.0	4.0	5.0

''K'' represents the meaning of thousands?

1K is a thousand silk, 24K is 24 thousand silk (24000) composition

Different K numbers represent different resistance.

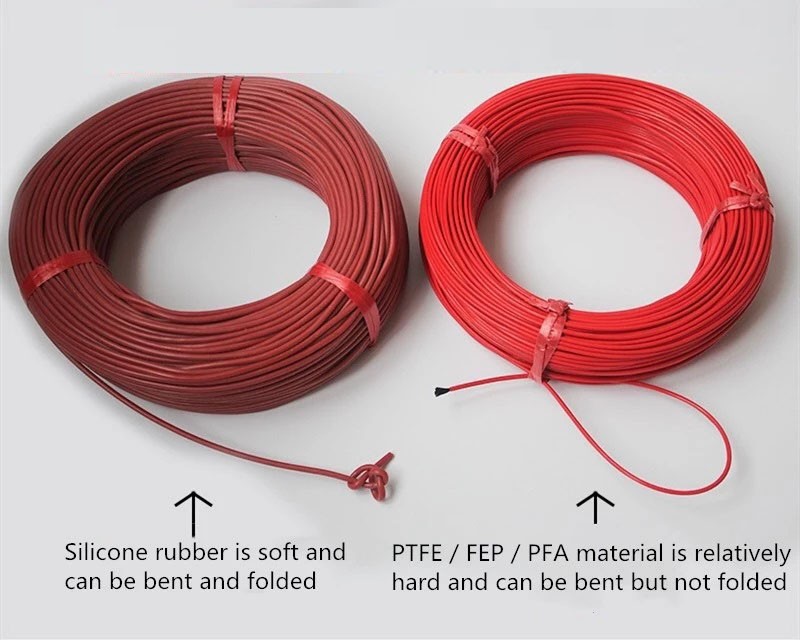

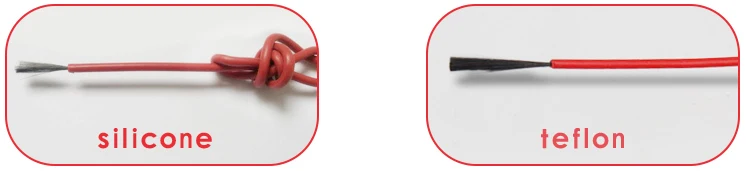

The difference between silicone and PTFE
PTFE/PFA/FEP carbon fiber heating wire
Advantages: Wear, corrosion resistance, no smell
Disadvantages: Relative to the silicone are not soft
Silicone carbon fiber heating wire
Advantages: Resistant to bending, soft
Disadvantages: There is smell

How to calculated power

Product power calculation:
(Voltage*Voltage)÷(resistance*length)=power
The longer the length, the smaller the power of the heating line

Precautions

The carbon fiber heating wires must not cross between each other during installation and should not be touched with each other. After installation, wait until the concrete floor is fully dried and then heat to prevent the floor from being cracked and twisted due to excessive temperature rise. When using the floor heating for a long time, set the minimum temperature first, then slowly heat up for the same reason.

Application

Floor heating system residential, villas, apartments, schools, hospitals, shopping malls, hotels, government institutions, gymnasiums, factories,venues, greenhouses insulation, aquaculture insulation and other place.
