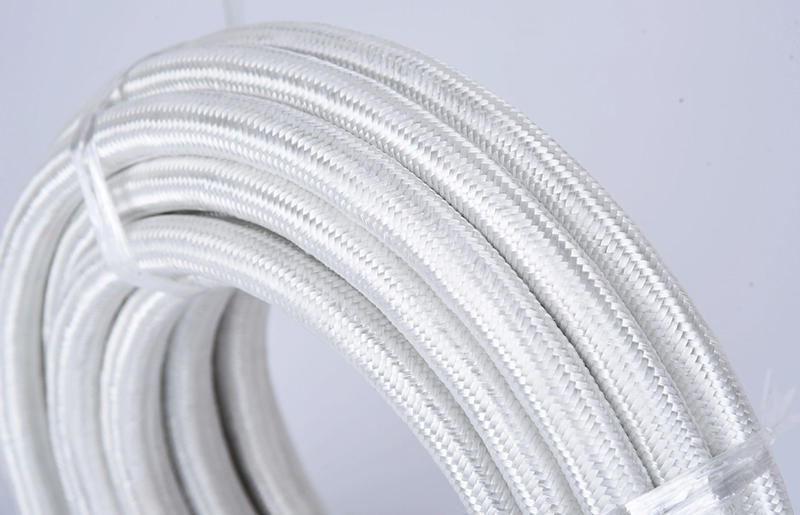

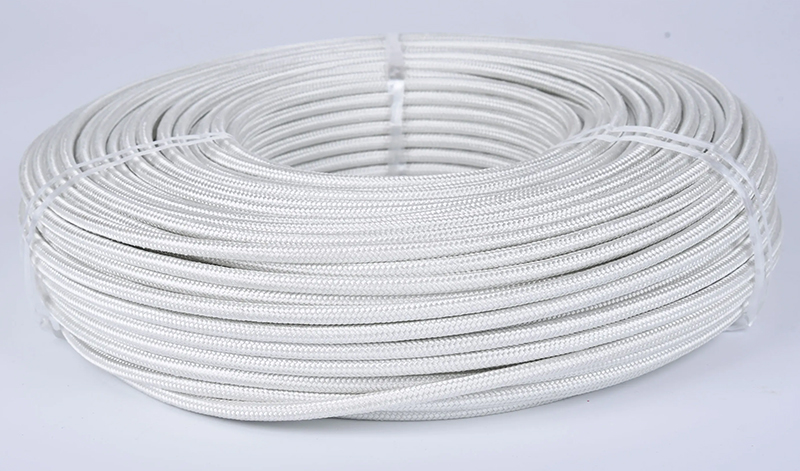

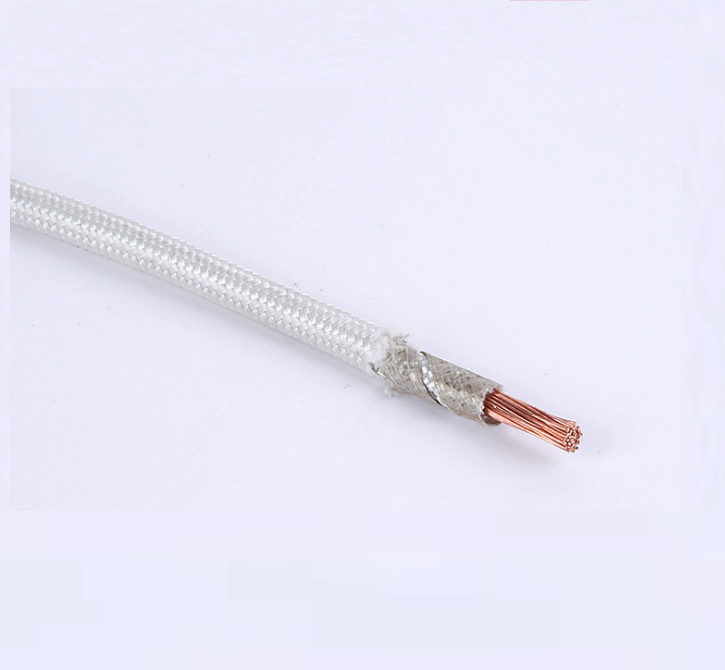

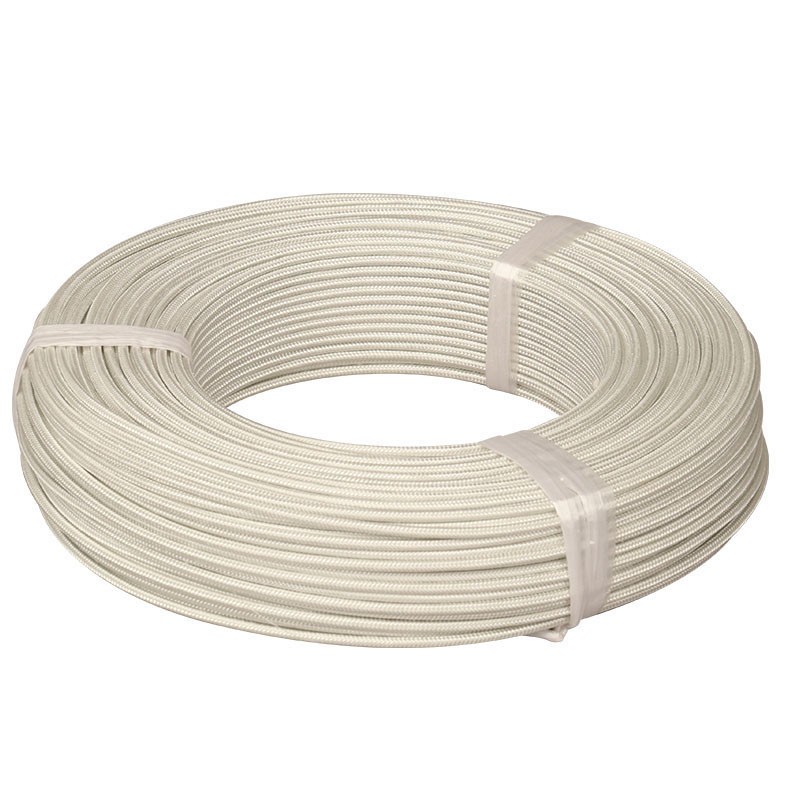

16mm100mm 500C 800C mica heat resistant cable fiberglass insulated wire mica high temp lead wire electric oven heating wire

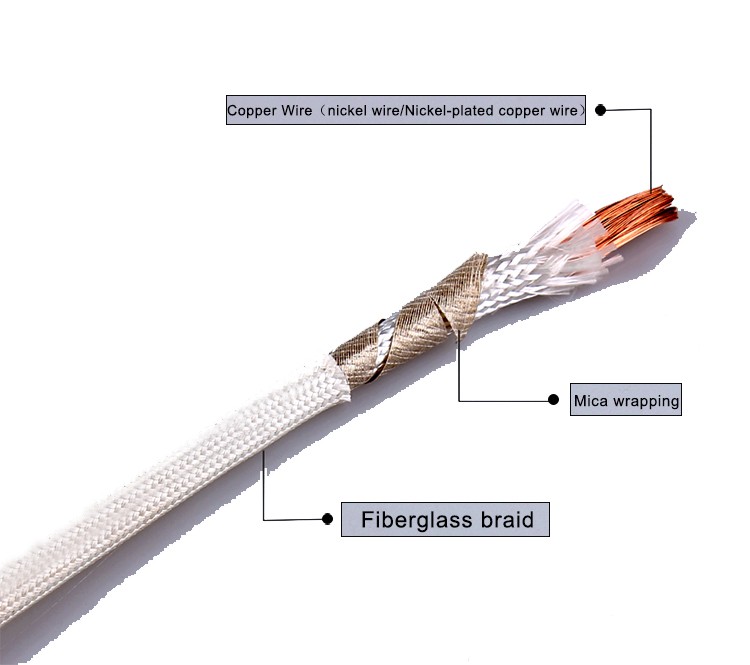

1). Conductor Material : Bare copper / Plated nickel copper / Pure nickel
2). Insulation Material :  Mica wrapping+Fiberglass braid

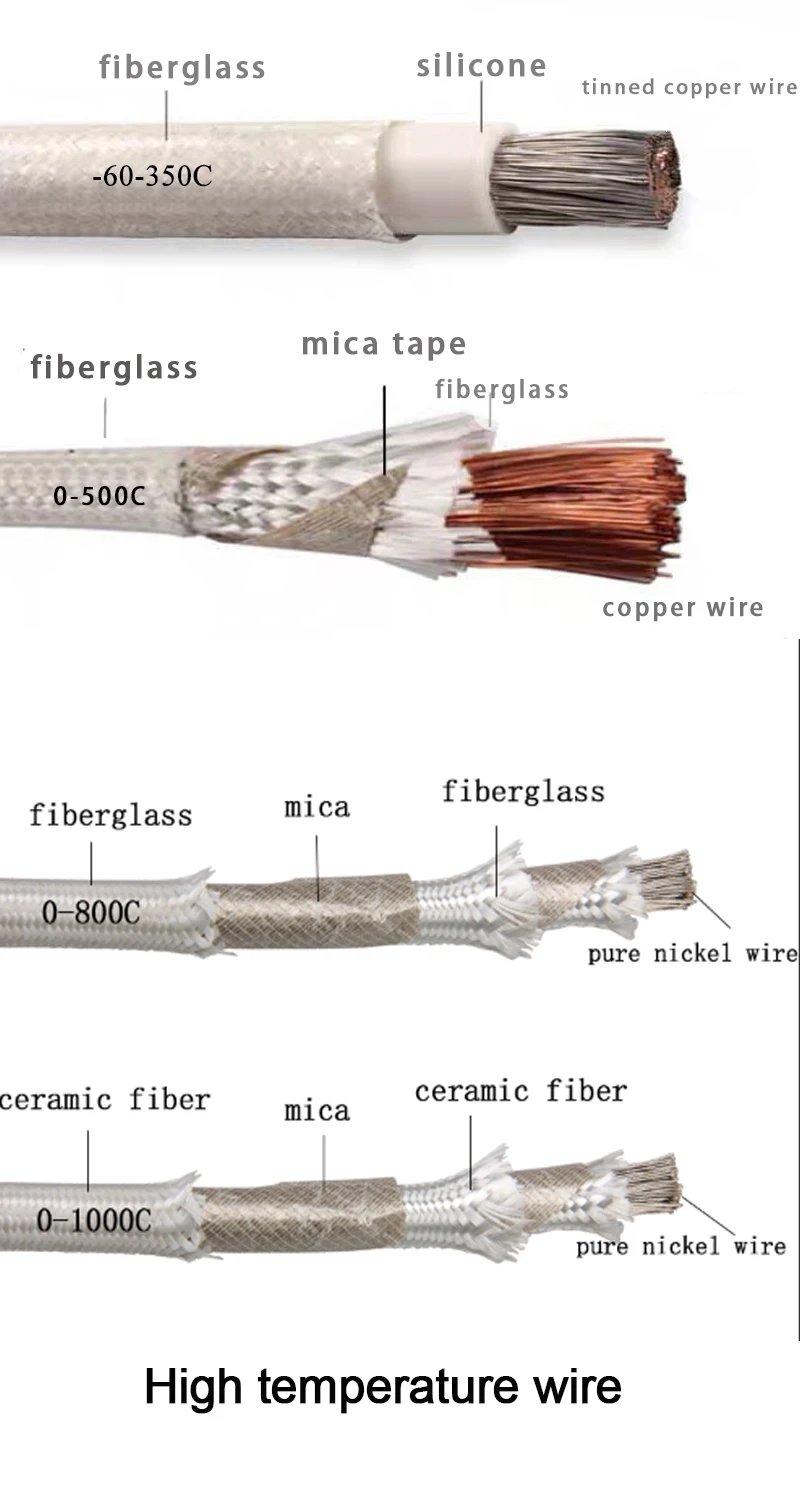

3). Rated Temperature : -60°C~+500°C 800°C 1000°C
4). Rated Voltage : 300/500V
5). Colors: Black,Red,White,Black/White,Red/Black,

Item	Value
Place of Origin	China (Shanghai )
Brand Name	Selfu
Product Name	Fire resistant mica fiberglass wire
Type	Insulated+Braid
Application	Electric conduction
Conductor Material	Bare copper / Plated nickel copper / Pure nickel
Conductor Type	Stranded
Conductor structure	0.3mm,0.4mm bare copper or customized
Insulation Material	Mica wrapping + Fiberglass Braid
Model Number	0.2mmsq - 180mmsq
Features	Super soft, Excellent flexibility
Conductor characteristics	Oxidation Resistance
Working temperature	500°C 800°C 1000°C
Customization	Customized service according to client's requirements
Color	Black,Red,White,Black/White,Red/Black or customized

Application

This product is used in the special environment of metallurgy, thermal engineering, petroleum,chemical engineering, natural gas, kerosene, instrument, aviation, civil furnace, etc. and a variety of electrical installations requiring fire resistance. Wiring of ovens or similar high temperature equipment such as commercial cooking equipment, heater bands, blast furnaces, coke ovens and cement kilns, where not subjected to repeated flexing and protected from mechanical abuse, and where the acceptability, including current-carrying capacity.
